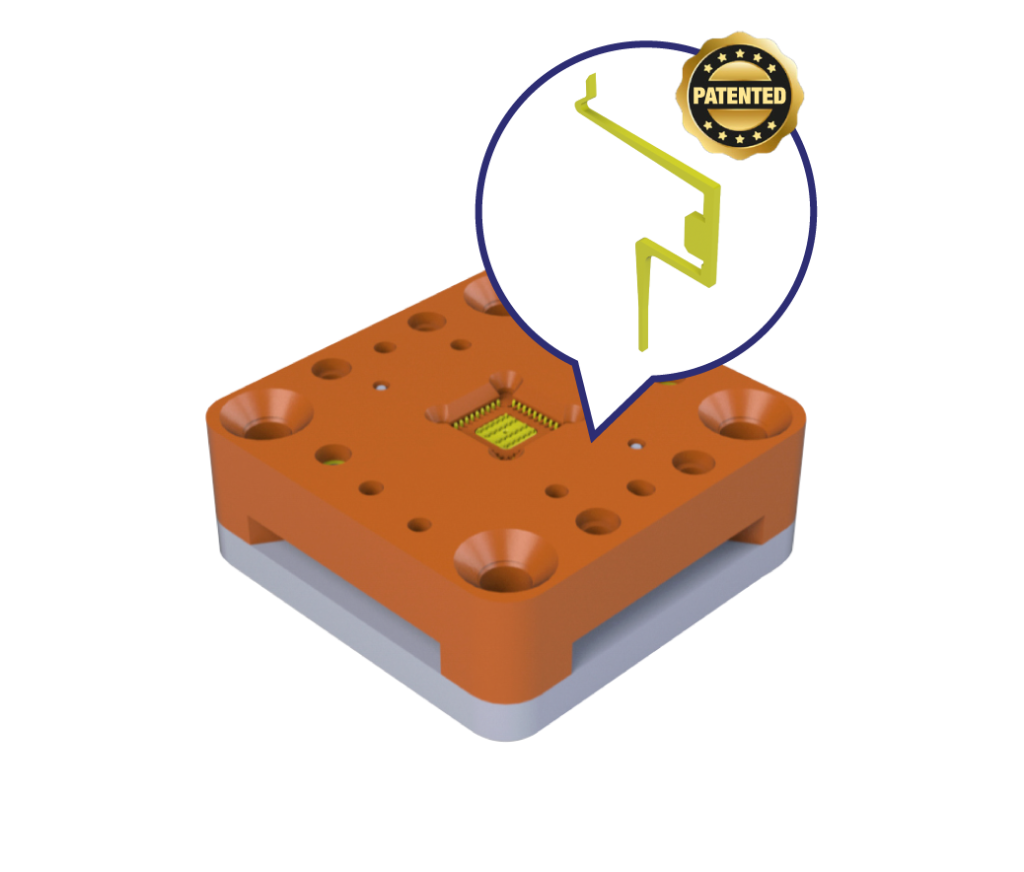

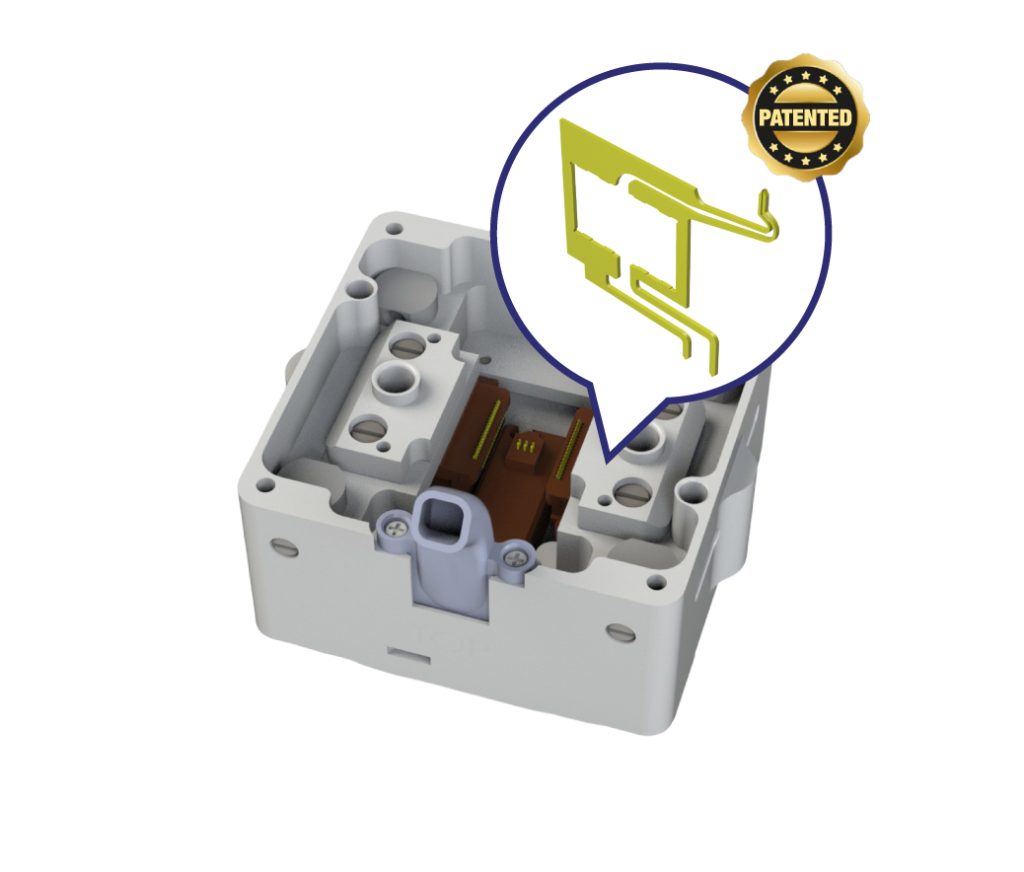

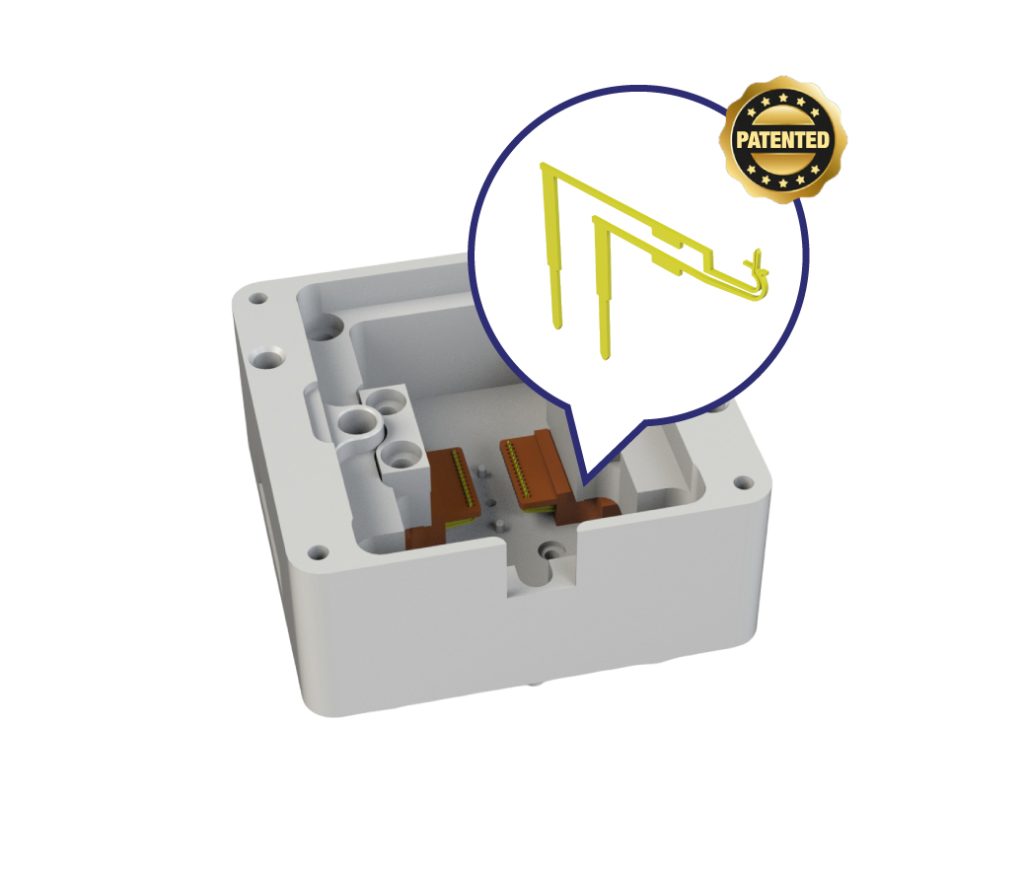

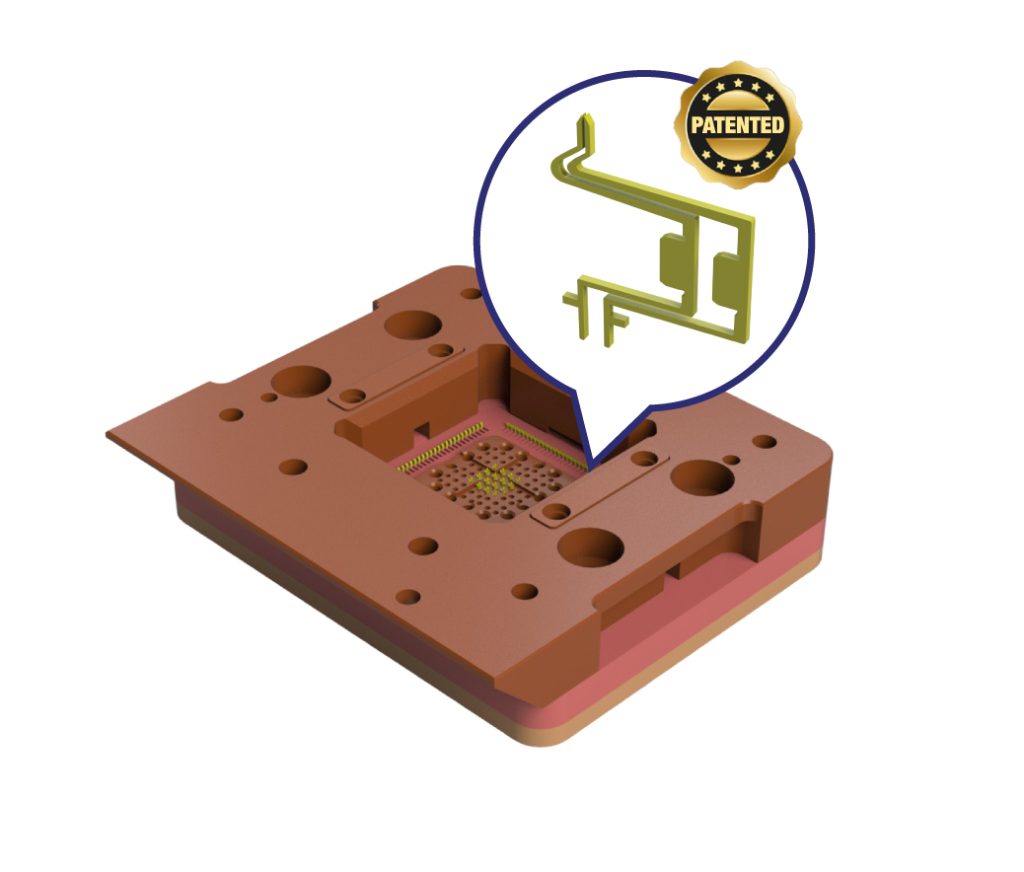

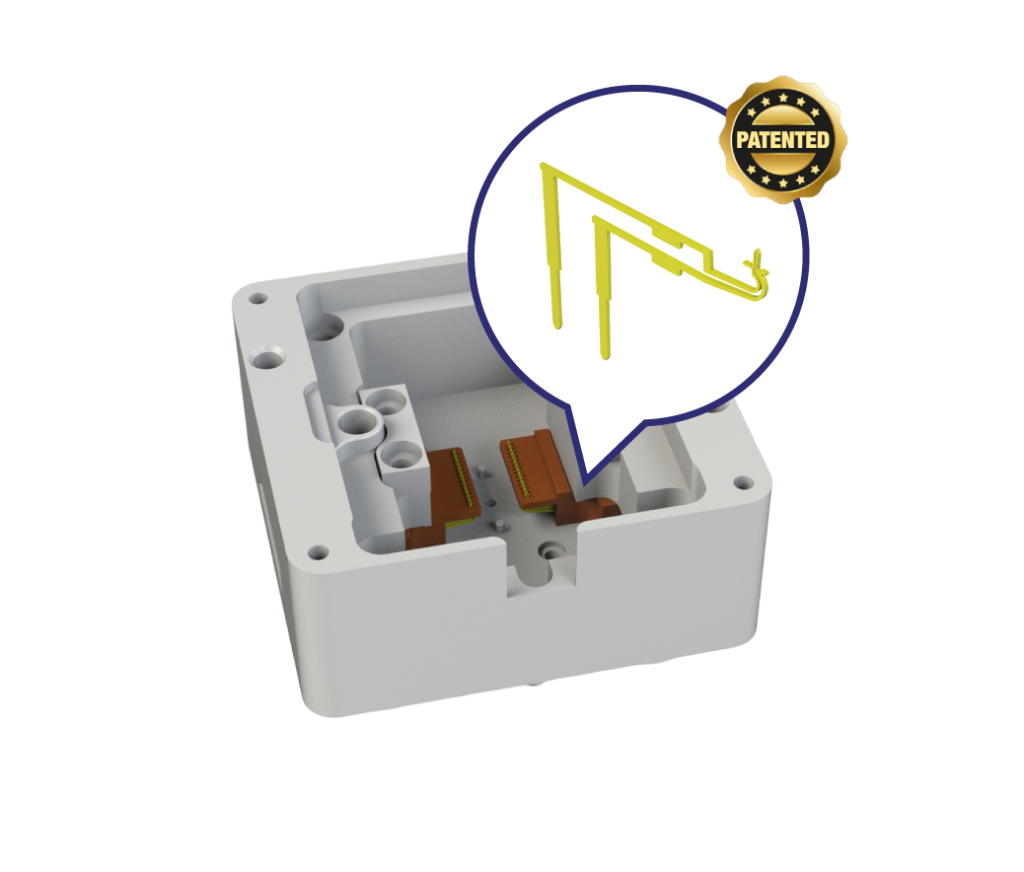

QFN / QFP Sockets with Cantilever Pin
IO Flash
- Ideal for high-precision testing in automotive and consumer electronics.
- Configurable with any portfolio pogo pin at any pitch.
- Designed with the maximum component clearance, top & bottom mounted, Alignment Plate, Retainer, Floating Base are easily removed.
- Easy to maintain (Long life span).
Benefits
Higher yield
Contamination & flakes improvement
Easy for cleaning of silvering
Higher yield after cleaning
Longer life span
Easier maintenance
C Flash Pin

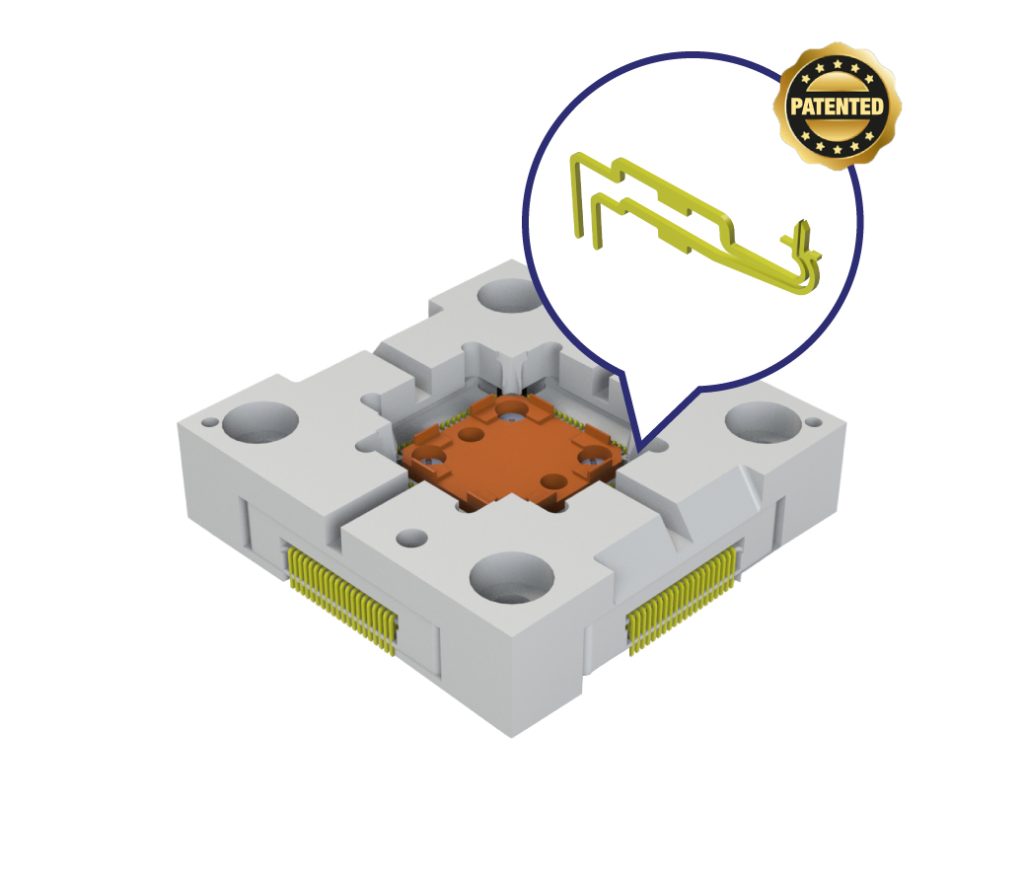

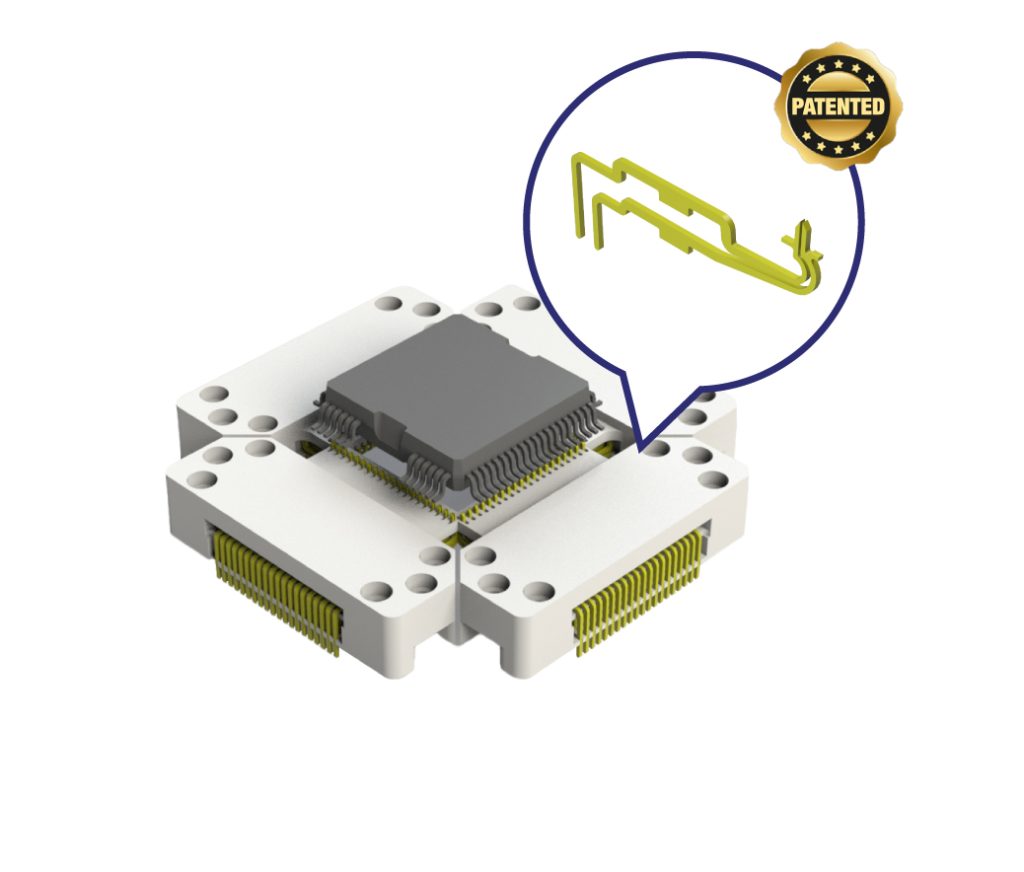

L Flash Pin
IO Flash Pin
| No. | Flash Pin Evaluation | Result |
|---|---|---|
| 1 | First Pass Yield | Consistently ≥95% |
| 2 | Cleaning Cycle (Flux Reduction) | Extended to 2-3 days (every days or half day) |
| 3 | Easy of Cleaning | Use nylon brush and air gun |
| 4 | After Cleaning Yield | Maintains ≥95% yield |
| 5 | Contact Lifespan | 200K to 300K cycles (+30% improvement) |
| 6 | OEE (Overall Equipment Effectiveness) | +5.0-6.0% (70%) |
| 7 | Contact Wiping Length | <0.1 mm (within specification) |
